Fiber Endcap Large core UV fiber endcap
we have more than 18 years professional experience in this field ,we can make as yours special request.

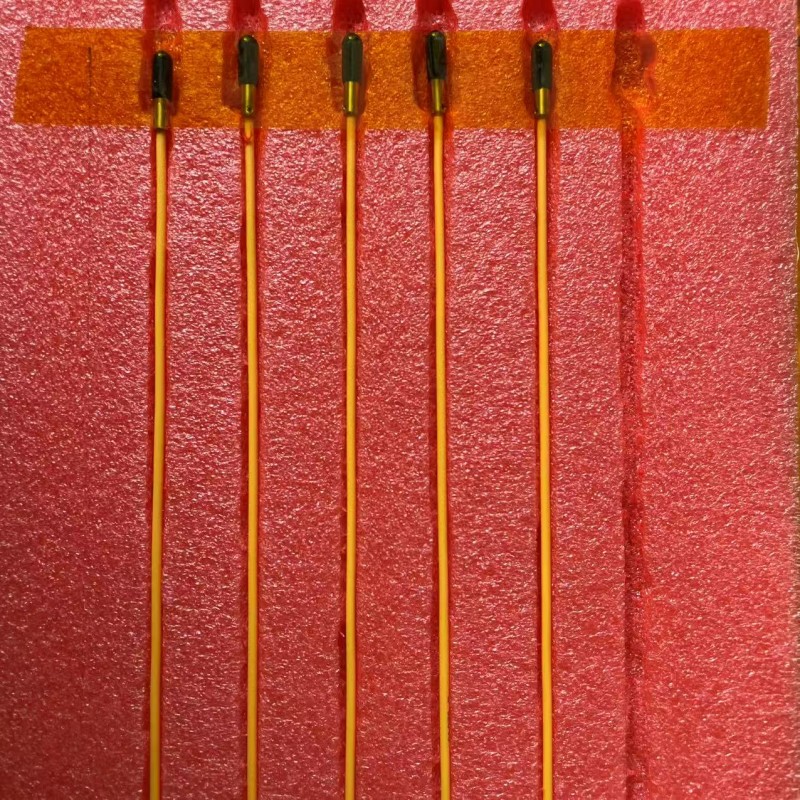

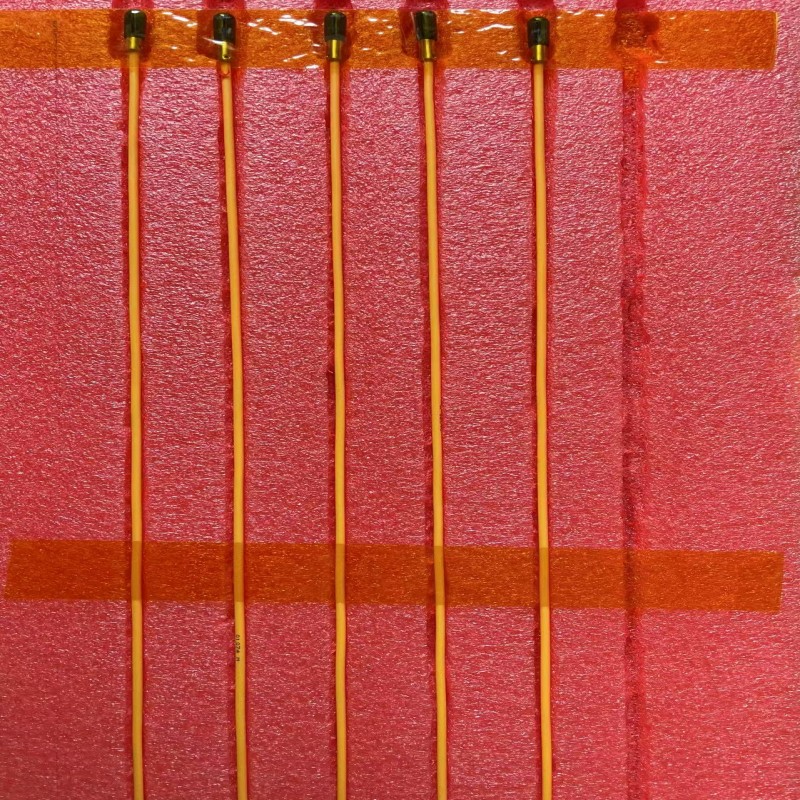

what we are going to show to you is our completed product .

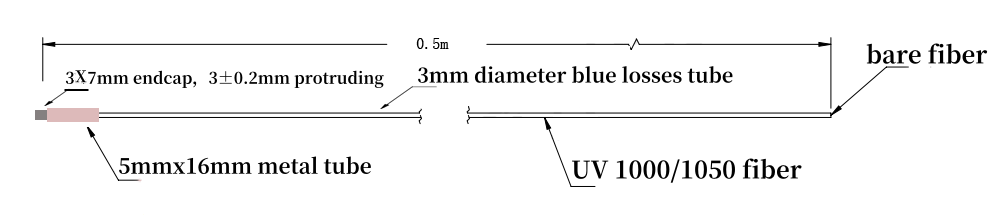

Product Specification:

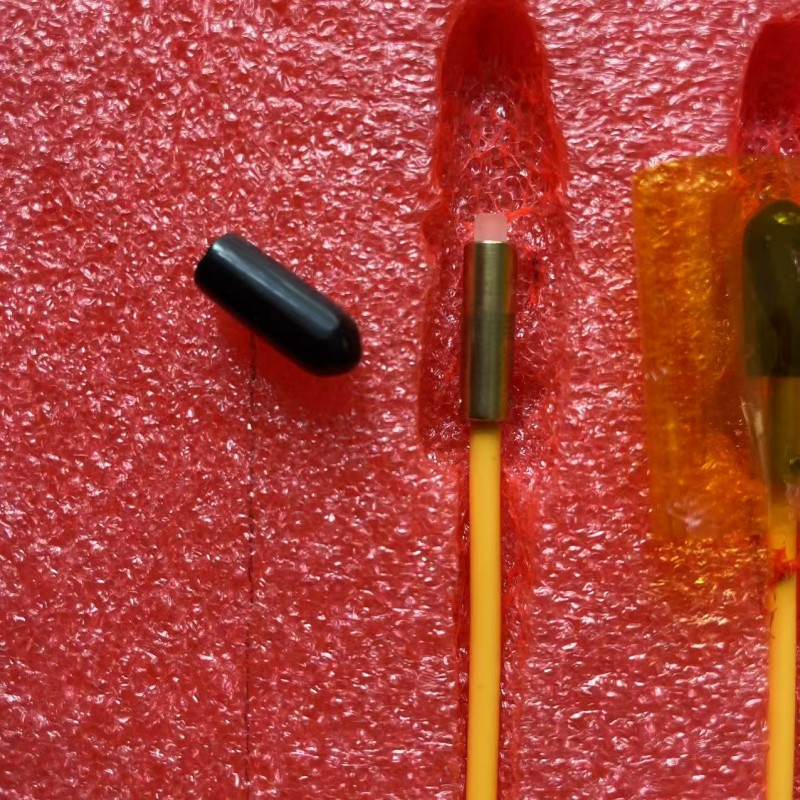

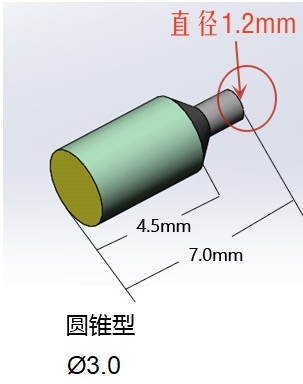

1: Quartz tappered endcap in size of 3mm outer diameter with 7mm in length
2:endcap spliced with UV fiber 1000/1050um

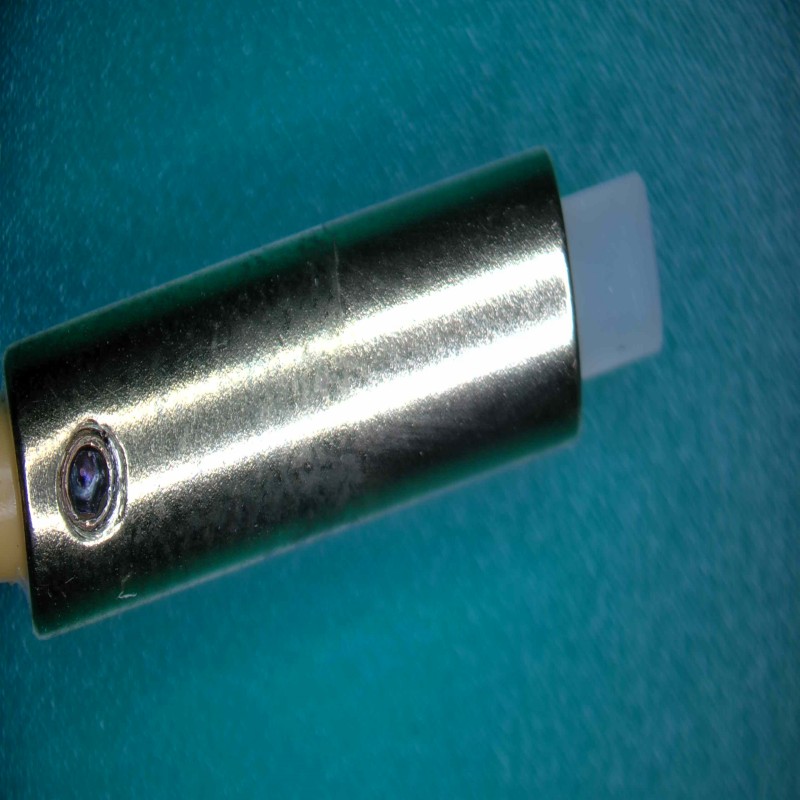

3:endcap protect in metal ferrule 5mm diameter with 16mm length
4:endcap 3mm protruding
5:fiber length in 0.5 meter (can becustomized)
6:fiber protected in 3mm diameter loose tube
For more information and related products,please take a look at our web-site:Fiber Array | Fiber V Groove Manufacturer – 3V-TECH
Applications
1. Fiber laser and amplifier: Fiber end caps are widely used in high-power fiber laser and amplifier output end face processing. By expanding the beam, the optical power density at the output end is reduced, the end face echo reflection is reduced, and the beam quality is ensured.
2. Fiber optic splice box: The fiber optic splice box has a cap type protection for the fiber optic splice point, which is waterproof and dustproof, suitable for outdoor environments, sealed and weather resistant, and easy to install.
